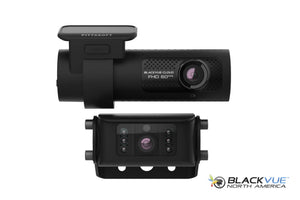

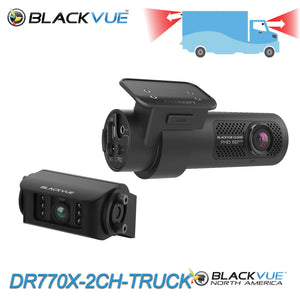

BlackVue DR770X-2CH-TRUCK Front and Waterproof Rear Exterior 1080p Dash Cam

Product Description

The new DR770X-2CH-TRUCK builds upon the successful BlackVue TRUCK models and takes the "truck" dash cam series to the next level. What sets the TRUCK series apart is the secondary camera - it is fully waterproof and can be installed in any location of your choice on the exterior of your vehicle. Moreover, the external camera features built-in infrared capability, ensuring that even in the darkest of nights, everything is captured in great detail. This feature is especially useful for heavy-duty trucks or vehicles that lack a rear windshield, or if you prefer to place the rear camera in an unconventional location such as underneath the vehicle, in the cargo bay, or on the rear bumper.

Sku: DR770X-2CH-TRUCK-64-00000
Vendor: BlackVue
Maximum quantity available reached.

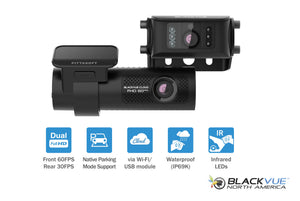

DR770X-2CH-TRUCK Features Graphic

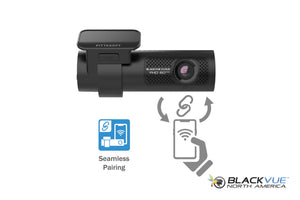

The DR770X also comes loaded with all the additional features you'd expect from a top tier dash cam, such as parking surveillance mode, seamless app pairing, optional LTE cloud connectivity, built-in Wi-Fi, GPS, and Bluetooth, as well as the option to add a secondary rear, or interior camera at any point in the future.

If that's got your attention, read on below as we highlight each of the outstanding features the DR770X-2CH-TRUCK has to offer.

Double The Frames, Double The Details

60fps vs 30fps

Recording video at 60 frames per second offers significant benefits. With the DR750X, you can capture ultra-smooth videos that preserve every detail, even in fast-paced action scenes. As a result, the camera is better equipped to capture crucial details like license plates, even when objects are in motion, as motion blur is greatly reduced compared to 30fps.

Add A Secondary Camera

DR770X-2CH-TRUCK Secondary Camera Selection

With the DR770X-2CH-TRUCK, you have the flexibility to switch between a rear-facing or interior-facing camera. Similar to the DR750X and DR900X series, the DR770X series is designed with an additional input port for a secondary camera. This means you have the option to use the DR770X as a front-only dash cam or swap out the secondary camera with another one of your choice.

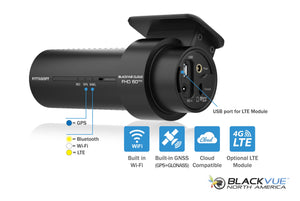

GPS, Wi-Fi and Optional LTE

DR770X-2CH-TRUCK GPS, Wi-Gi, Optional Cloud

GPS: While reviewing the footage, you can track the location of your vehicle on a map, and the video can also display your speed as an overlay. If you prefer not to have the speed displayed, you can hide it through the settings.

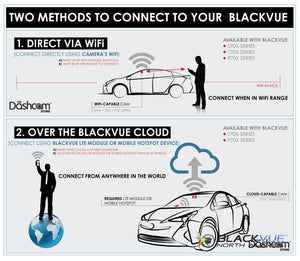

Wi-Fi: Thanks to its Wi-Fi capabilities, you can effortlessly link your BlackVue dashcam to your smartphone or tablet. Moreover, Wi-Fi connectivity allows the camera to connect to the BlackVue Cloud via any mobile or home Wi-Fi hotspot or router. This connection grants easy access to files and settings.

Optional LTE: For the optimal Cloud experience, you have the option to connect the DR770X to the BlackVue Cloud via an LTE connectivity module. The module can be connected via the USB port.

*SIM card included!*

Optional LTE Module

DR770X-2CH-TRUCK Optional Cloud Features

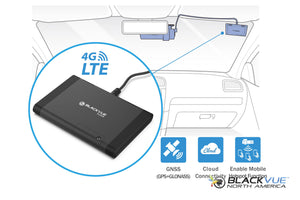

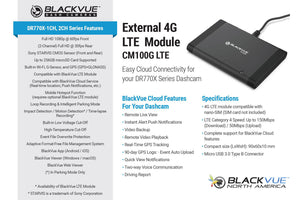

With the optional CM100LTE module, connecting to the cloud 24/7 is effortless. This add-on device links to the DR770X front camera through a USB port, enabling a constant internet connection. It also transforms the DR770X into a mobile hotspot for up to five devices. Unlike in-vehicle Wi-Fi hotspots, this module stays active while parked, making your dash camera accessible from any location worldwide.

3 Native Parking Surveillance Modes

DR770X-2CH-TRUCK Parking Surveillance

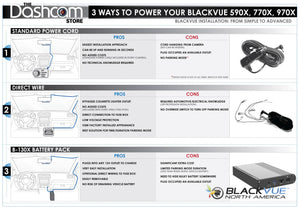

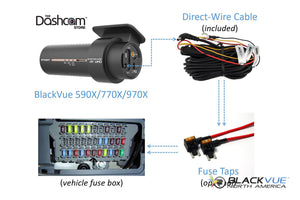

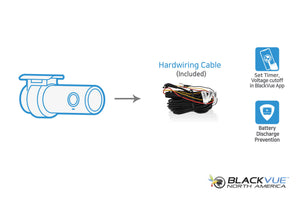

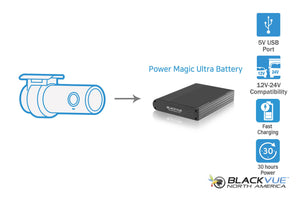

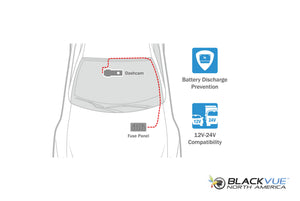

By using the included hardwiring kit or the optional B-130X battery pack, you can hardwire the DR770X to your vehicle's fuse panel for Parking Surveillance Mode. When the ignition is turned off, the DR770X will switch to Parking Mode automatically. There are three variations of Parking Mode available:

Motion Detection: Triggered when the sensor detects movement (marked “P” in the file list).

Impact Detection: Detected by the accelerometer/G-sensor (marked “E” in the file list)

Time Lapse Mode: Records continuously at 1FPS. 1-minute Time lapse Parking Mode video = 30 minutes real time coverage. Impacts initiate a buffered Event video.

Impact & Motion Detection

DR770X-2CH-TRUCK Impact & Motion Detection

The built-in accelerometer (G-sensor) in the DR770X can detect abrupt changes in speed or impacts while driving. Similarly, when parked, it can detect any visible movements around your vehicle, and these incidents are automatically labeled and saved. If a cloud connection is established, you can receive alerts and access the clips from both your computer and mobile device.

Optional Cloud Features

  • Live View: Monitor your car in real time.
  • Live Event Upload: Impact and Motion detection events are uploaded straight to the Cloud.
  • Video Backup: Move files from the dashcam to the Cloud!
  • Remote Video Playback: Play videos stored in the Cloud or in your dashcam anytime on your smartphone.
  • Emergency Alarm: Get a notification whenever something happens to your car.

Included in the Box

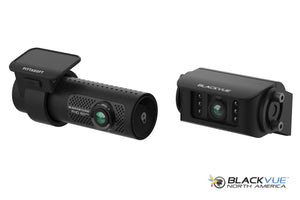

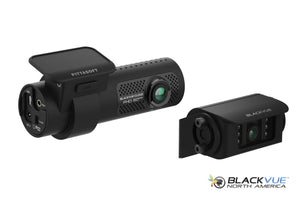

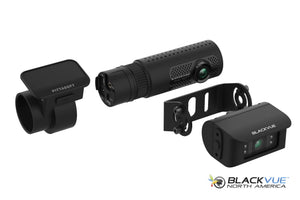

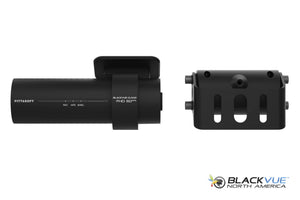

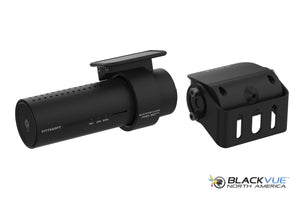

  • BlackVue DR770X-2CH-TRUCK Front-Facing Camera w/ Adhesive Windshield Mount
  • BlackVue DR770X-2CH-TRUCK Exterior Rear Facing Camera w/ Metal Mounting Bracket

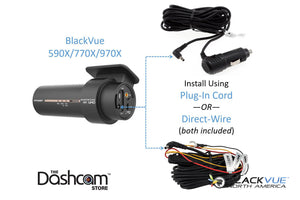

  • Cigarette Lighter Power Outlet Power Cord (15ft/4.5m)
  • Front to Rear Video Cable Cord (49ft/15m)
  • BlackVue OEM MicroSD Memory Card (choice of 64/128/256 GB)
  • USB MicroSD Memory Card Reader/Adapter
  • Adhesive Cable Holders (8)
  • Rear Camera Mounting Hardware
  • Trim Tool
  • Spare 3M™ Adhesive Pads (1 Front)
  • Quick Start Manual
Channel 2CH
Highlights Full HD (Front + External Waterproof IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)

Front: Black / Width 118.5 mm (4.67″) x Height 36 mm (1.42″) /104 g (3.6 oz)

Rear: Black / Width 65 mm (2.55″) x Height 36 mm (1.41″) / 157 g (5.5 oz)

Rear Camera Connection Waterproof coaxial cable
Memory microSD Card (64 GB / 128 GB / 256 GB)
Recording Modes

Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).

* For Parking mode recording, a Parking Mode Battery Pack (Power Magic Battery Pack) or a Parking Mode Hardwiring Kit (Power Magic Pro) is required.

Parking Mode

YES (with 3-wire hardwiring cable – included)

Parking Mode Event Voice Notifications



Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Viewing Angle

Front: Diagonal 139°°, Horizontal 116°, Vertical 61°

Rear: Diagonal 116°, Horizontal 97°, Vertical 51°

Resolution/Frame Rate

Front: Full HD (1920 x 1080) @ 60 fps

Rear: Full HD (1920 x 1080) @ 30 fps

* Frame rate may vary during Wi-Fi streaming.

Video Codec H.265 (HEVC)
Image Quality

Highest (Extreme): 25+10 Mbps

Highest: 12+10 Mbps

High: 10+8 Mbps

Normal: 8+6 Mbps

Format Free YES (Adaptive)

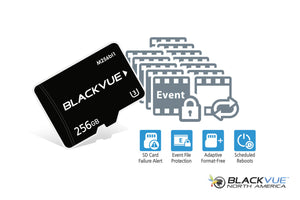

Event File Overwrite Protection YES (up to 50)
Video Compression Mode MP4
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Bluetooth Built-in (V2.1+EDR/4.2)
Wi-Fi Built-in (802.11 b.g.n)
Cloud Compatible YES
LTE Optional External Module
GPS Built-in (Dual Band: GPS, GLONASS)
Microphone Built-in

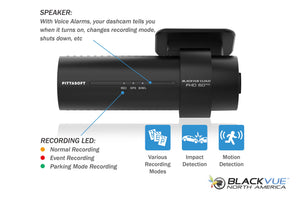

Speaker (Voice Guidance) Built-in
Impact Sensor 3-Axis Acceleration Sensor
LED Indicators

Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED

Rear: Rear Security LED

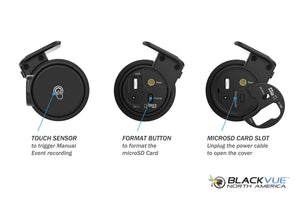

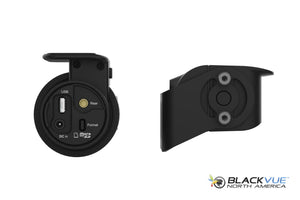

Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.

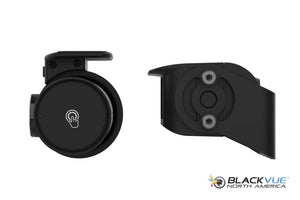

Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.

Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption

Normal Mode (GPS On/2CH): Avg. 380mA / 12V

Parking Mode (GPS Off/2CH): Avg. 300mA / 12V

* Actual power consumption may vary depending on use conditions and environment.

Operation Temperature -20°C − 80°C (-4°F − 176°F)
Storage Temperature -20°C − 80°C (-4°F − 176°F )
High Temperature Cut-Off Approx. 80°C (176°F)

Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC

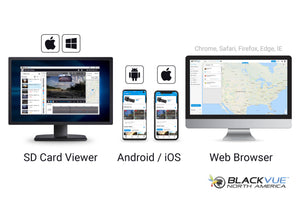

BlackVue Viewer

* Windows 7 or higher and Mac Yosemite OS X (10.10) or higher

BlackVue Web Viewer

* Chrome 71 or higher, Safari 13.0 or higher

Application BlackVue Application (Android 8.0 or higher, iOS 13.0 or higher)
Other Features Adaptive Format Free File Management System

BlackVue Desktop Viewer




English (Multilanguage): DR770X (1CH/2CH)
