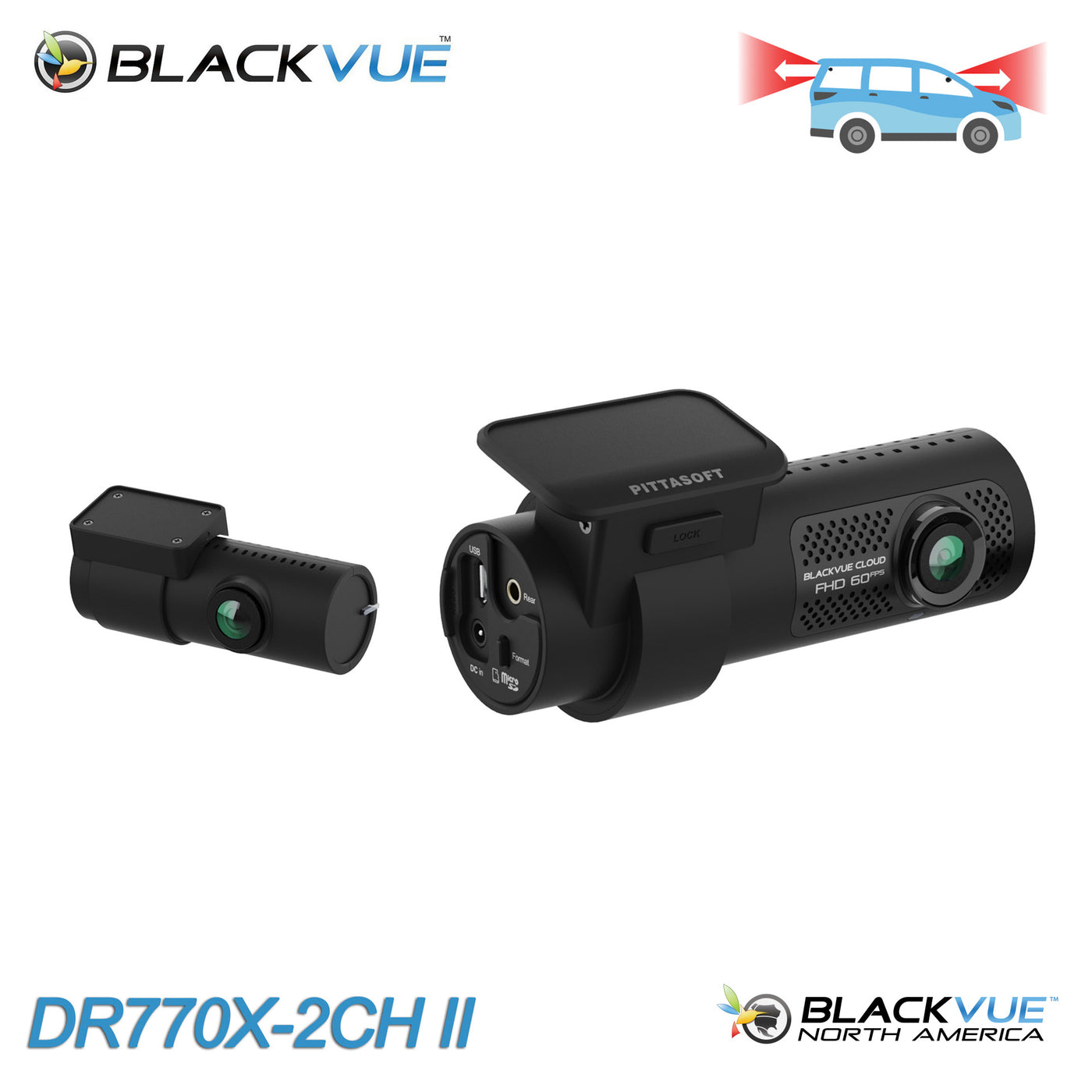

BlackVue DR770X-2CH II Front and Rear 1080p Full HD Cloud-Ready Dash Cam
BlackVue DR770X-2CH II
Full HD Front and Rear Recording Powered by Sony STARVIS Sensors


Access The Cloud
via optional LTE module

Seamless app pairing
Connect Instantly. Control Effortlessly

The DR770X Series Just Got Better
The next evolution of the BlackVue DR770X series, this upgraded lineup delivers enhanced video quality, faster boot times, and optimized Wi-Fi performance for seamless connectivity. With expanded 1TB microSD support and improved audio recording, every detail is clearer than ever. Experience smarter protection with a dash cam that’s ready when you are.
Key Upgrades
- Enhanced video quality
- 1TB microSD support
- Improved audio recording with reduced noise
- Optimized Wi-Fi performance
- Start up time reduced from 24–36s to ~14s
Front + Rear Recording
This Front + Rear dual channel setup provides a near 360-degree bubble around your vehicle, ensuring incidents while driving and while parked are captured no matter the circumstance. This is a great option for parents of teen drivers, company vehicles, and daily commute vehicles.


Optional LTE Module
The optional CM100LTE module makes it easy to connect to the cloud 24/7. This add-on device connects to the DR770X front camera via USB port, providing a constant internet connection and allowing the DR770X to serve as a mobile hotspot for up to five devices. Unlike in-vehicle Wi-Fi hotspots, the module stays powered on while parked and provides access to your dash camera from anywhere in the world. If you'd like LTE built directly into your dash cam, check out the DR970X-2CH-LTE-PLUS
BlackVue Cloud
Packed With Innovative Features Live View, Emergency Alarm, GPS Tracking,Two-way Voice Communication, Video Backup, Remote Video Playback, the possibilities are endless. BlackVue Over the Cloud is all about using your dashcam to its full potential, so that you and your car are always connected

Parking Mode
Connecting the DR770X to your car via the included Hardwiring Power Cable or the optional B-130A Battery Pack battery pack allows for parking mode. When parked, the DR770X can also detect any visual movements around your vehicle. These events are automatically tagged and saved. If a cloud connection is present, you'll have the ability to receive alerts and view the clips from both computer and mobile device.

More Features & Information
The DR770X is of course still fully functional as a 'typical' dash cam, recording at all times when you drive, whether you choose to utilize the optional LTE / Cloud features or not:
- When plugged in to your standard power outlet in the vehicle, the system will still power on and off with the vehicle, automatically recording audio, video and GPS speed & location at all times as you drive.
- For motion detection ("parking mode") recording, the DR770X can be hardwired directly to the vehicle's electrical system via the included direct-wire cable, a new value-added feature of the BlackVue "X" series. No need for a separate Power Magic Pro (although you can still use the Power Magic Pro if you desire). Alternatively, the DR770X can also be powered by the BlackVue B-130A Battery Pack instead of your car battery while the vehicle is parked.
- All normal driving and parking mode recordings are automatically stored locally on the internal BlackVue memory card (64/256/512 GB options available). Once the memory card is completely 'full', only the oldest video file on the card is overwritten as each new video file is created (this is known as loop recording).
- The memory card can be removed and plugged in to your PC or Mac using the included microSD to USB adapter. This is an easy way to do a bulk download or backup of all your videos.
- The DR770X does not have a screen on it from which to play back recorded videos from the memory card. Thankfully, the recordings can be accessed via a direct WiFi connection. You can connect to the 750X with your smartphone the same way you would connect to a WiFi network at home or at Starbucks, then use the free BlackVue app to view and download your recordings directly from the camera.
- Audio recording, on by default, can be disabled temporarily, or turned off completely by default.
- GPS speed display can be disabled from being visible in your video recordings.
- Everything you need to use the system is included in the box: front camera with adhesive windshield mount, BlackVue memory card, plug-in power cable, optional direct-wire power cord, etc.
A Note on Memory Cards
All BlackVue dashcams include a BlackVue-branded 64, 256, 128, 512 GB memory card. While the memory cards are removable and the card slots will accept other brands of memory cards, we strongly suggest the use of only BlackVue memory cards in the BlackVue dashcams, as the use of a non-BlackVue memory card may cause performance issues and may void your manufacturer’s warranty.
BlackVue OEM memory cards are industrial-grade VNAND-type microSD cards and are designed and tested to withstand the extreme temperatures, vibrations and the constant read/write cycles of high quality dashcams. Typical consumer-grade memory cards such as those from SanDisk are simply not up to the task. Stick with the OEM BlackVue memory cards to ensure your dashcams are always recording when it matters most.
DR770X-2CH II | |
Channel | 2CH |
Highlights | Full HD (Front + Rear), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module |
Color/Size/Weight |
Front: Black / Width 118.5 mm (4.66in) x Height 36 mm (1.41in) / 95 g (3.35oz) Rear: Black / Width 67.4 mm (2.65in) x Height 25 mm (0.98in) / 25 g (0.88oz) |
Rear Camera Connection | Coaxial cable |
Memory | microSD Card (64 GB / 128 GB / 256 GB / 512 GB / 1 TB) |
Recording Modes |
Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected). * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
Parking Mode |
YES (with 3-wire hardwiring cable – included) |
Parking Mode Event Voice Notifications |
YES |
Camera Imaging Sensor |
Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) Rear: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel) |
Viewing Angle |
Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear: Diagonal 139°, Horizontal 116°, Vertical 61° |
Resolution/Frame Rate |
Front: Full HD (1920 x 1080) @ 60 fps Rear: Full HD (1920 x 1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming. |
Video Codec | H.264 (AVC) |
Image Quality |
Highest (Extreme): 25+10 Mbps Highest: 12+10 Mbps High: 10+8 Mbps Normal: 8+6 Mbps |
Format Free | YES (Adaptive) |
Event File Overwrite Protection | YES (up to 50) |
Video Compression Mode | MP4 |
SD Card Failure Alert | YES |
Scheduled Reboot | YES |
Video File Extension | MP4 |
Bluetooth | Built-in (V2.1+EDR/4.2) |
Wi-Fi | Built-in (802.11 b.g.n) |
Cloud Compatible | YES |
LTE | Optional External Module |
GPS | Built-in (Dual Band: GPS, GLONASS) |
Microphone | Built-in |
Speaker (Voice Guidance) | Built-in |
Impact Sensor | 3-Axis Acceleration Sensor |
LED Indicators |
Front: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Rear: Rear Security LED |
Button |
Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. |
Backup Battery | Built-in supercapacitor |
Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
Power Consumption |
Normal Mode (GPS On/2CH): Avg. 380mA / 12V Parking Mode (GPS Off/2CH): Avg. 300mA / 12V * Actual power consumption may vary depending on use conditions and environment. |
Operation Temperature | -20°C − 80°C (-4°F − 176°F) |
Storage Temperature | -20°C − 80°C (-4°F − 176°F ) |
High Temperature Cut-Off | Approx. 80°C (176°F) |
Certifications |
Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC |
Software |
BlackVue Viewer * Windows 7 or higher and Mac Yosemite OS X (10.10) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
Application | BlackVue Application (Android 8.0 or higher, iOS 13.0 or higher) |
Other Features | Adaptive Format Free File Management System |
