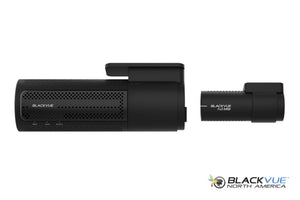

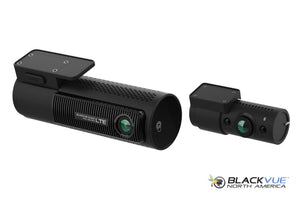

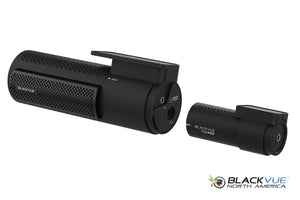

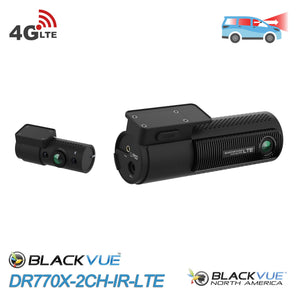

BlackVue DR770X-2CH-IR-LTE 1080p LTE Dash Cam With SIM Card

Product Description

Capture unprecedented day and night detail with the BlackVue DR770X-2CH-IR-LTE dashcam. Enjoy advanced features like parking mode, seamless app pairing, LTE cloud connectivity, Wi-Fi, GPS, Bluetooth, and a choice of rear or interior camera. Plus, get a free BlackVue LTE SIM card included. Buy now for the ultimate driving experience!

With LTE SIM activated, you're connected to your dash cam 24/7. You can monitor your vehicle with remote live view, receive alerts when motion or impacts are detected, check current and event map locations, utilize Hotspot functionality, and more!

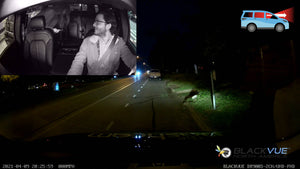

With the infrared Interior-Facing feature, these dash cams can monitor what's going on inside the vehicle day or night, including the actions of the driver and passengers. This can be particularly useful for parents of teenage drivers, ride-sharing services, and company vehicles. In addition to the interior cabin view, these dash cams can also be positioned to capture what's out the rearview window, a best of both worlds bonus over other camera systems. Read on to learn more about the features of the DR770X-2CH-IR-LTE.

Sku: DR770X-2CH-IR-LTE-NA-64-00000
Vendor: BlackVue
$479.99
Maximum quantity available reached.

BlackVue LTE SIM Card Included

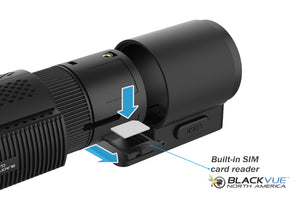

BlackVue SIM Cards are included in North American (NA) models, which enables immediate access to BlackVue Cloud upon unboxing. By inserting the SIM Card into the designated tray and powering on the BlackVue device, you can proceed to follow the instructions outlined in the BlackVue App. In addition, you'll be given a complimentary 1GB trial for the initial month of usage. If you need additional data, you can opt for a 1GB, 3GB, or 5GB plan, and make monthly payments. There is no obligation to continue, and you may cancel at any time.

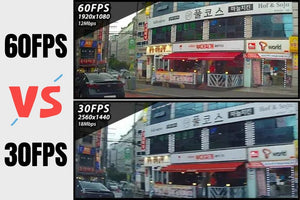

Double The Frames, Double The Details

Recording video at 60 frames per second offers significant benefits. With the DR770X, you can capture ultra-smooth videos that preserve every detail, even in fast-paced action scenes. As a result, the camera is better equipped to capture crucial details like license plates, even when objects are in motion, as motion blur is greatly reduced compared to 30fps.

Mobile Hotspot Functionality

Your DR770X-2CH-IR-LTE has the capability of functioning as a Wi-Fi router for your vehicle, providing internet access for up to five devices simultaneously. With this feature, you and your passengers can conveniently use your BlackVue's internet to connect laptops, portable game consoles, tablets, or mobile devices, and enjoy uninterrupted browsing while on the go.

GPS, Wi-Fi and Mobile Hotspot

GPS: While reviewing the footage, you can track the location of your vehicle on a map, and the video can also display your speed as an overlay. If you prefer not to have the speed displayed, you can hide it through the settings.

Wi-Fi: Thanks to its Wi-Fi capabilities, you can effortlessly link your BlackVue dashcam to your smartphone or tablet. Moreover, Wi-Fi connectivity allows the camera to connect to the BlackVue Cloud via any mobile or home Wi-Fi hotspot or router. This connection grants easy access to files and settings.

Seamless Pairing: With Seamless Pairing, configuring your dashcam is effortless. Simply power on the device and connect it seamlessly through the BlackVue app. By following the straightforward instructions, you can access the dashcam's settings and files or connect to the Cloud. Seamless Pairing streamlines the process and simplifies navigation, whether you need to browse or connect.

3 Native Parking Surveillance Modes

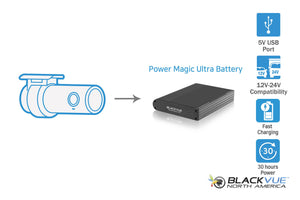

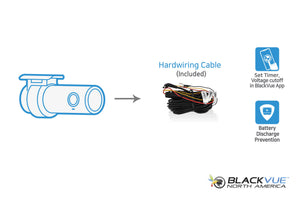

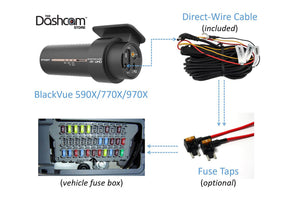

By using the included hardwiring kit or the optional B-130X battery pack, you can hardwire the DR770X to your vehicle's fuse panel for Parking Surveillance Mode. When the ignition is turned off, the DR770X will switch to Parking Mode automatically. There are three variations of Parking Mode available:

Motion Detection: Triggered when the sensor detects movement (marked “P” in the file list).

Impact Detection: Detected by the accelerometer/G-sensor (marked “E” in the file list)

Time Lapse Mode: Records continuously at 1FPS. 1-minute Time lapse Parking Mode video = 30 minutes real time coverage. Impacts initiate a buffered Event video.

Impact & Motion Detection

The built-in accelerometer (G-sensor) in the DR770X can detect abrupt changes in speed or impacts while driving. Similarly, when parked, it can detect any visible movements around your vehicle, and these incidents are automatically labeled and saved. If a cloud connection is established, you can receive alerts and access the clips from both your computer and mobile device.

Cloud Features

  • Live View: Monitor your car in real time.
  • Live Event Upload: Impact and Motion detection events are uploaded straight to the Cloud.
  • Video Backup: Move files from the dashcam to the Cloud!
  • Remote Video Playback: Play videos stored in the Cloud or in your dashcam anytime on your smartphone.
  • Emergency Alarm: Get a notification whenever something happens to your car.

Box Contents

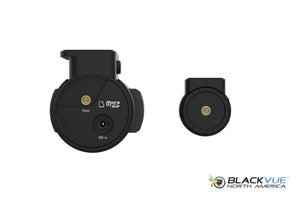

  • BlackVue DR770X-2CH-IR-LTE Front-Facing Camera w/ Windshield Mount
  • BlackVue DR770X-2CH-IR-LTE Interior-Facing Camera w/ Windshield Mount
  • BlackVue LTE SIM Card
  • Cigarette Lighter Power Outlet Power Cord
  • Direct-Wire Power Outlet Power Cord
  • BlackVue OEM MicroSD Memory Card (choice of 64/128/256 GB)
  • USB MicroSD Memory Card Reader/Adapter
  • Adhesive Cable Holders
  • Trim Removal Tool
  • Spare 3M™ Adhesive Pads
  • Quick Start Manual
DR770X-2CH LTE (NA)
Channel 2CH
Highlights Full HD (Front + Interior IR Cam), Cloud, Wi-Fi, GPS, Dual Sony Sensors, External LTE Module (Optional)
Color/Size/Weight

Front: Black / Width 137.6 mm (5.41″) x Height 43 mm (1.69″) /159 g (5.6 oz)

Back: Black / Width 67.4 mm (2.65″) x Height 25 mm (0.98″) / 25 g (0.88 oz) (2-CH Only)

Memory microSD Card (64 GB / 128 GB / 256 GB)
Interior Camera Connection Coaxial cable
Recording Modes

Normal recording, Event recording (when impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected).

* For Parking mode recording, a Parking Mode Battery Pack (Power Magic Battery Pack) or a Parking Mode Hardwiring Kit (Power Magic Pro) is required.

Parking Mode

YES (with 3-wire hardwiring cable – included)

Parking Mode Event Voice Notifications

YES

Camera

Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)

Interior: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP)

Viewing Angle

Front: Diagonal 139°, Horizontal 116°, Vertical 61°

Rear: Diagonal 180°, Horizontal 150°, Vertical 93°

Resolution/Frame Rate

Front: Full HD (1920×1080) @ 60 fps

Interior: Full HD (1920 x 1080) @ 30 fps

* Frame rate may vary during Wi-Fi streaming.

Video Codec H.265 (HEVC)
Image Quality

Highest (Extreme): 25+10 Mbps

Highest: 12+10 Mbps

High: 10+8 Mbps

Normal: 8+6 Mbps

Format Free YES (Adaptive)
Event File Overwrite Protection YES (up to 50)
Video Compression Mode MP4
SD Card Failure Alert YES
Scheduled Reboot YES
Video File Extension MP4
Bluetooth Built-in (V2.1+EDR/4.2)
Wi-Fi Built-in (802.11n (2.4~2.4835 GHz))
Cloud Compatible YES
LTE Built-in (SIM card included)
GPS Built-in (Dual Band: GPS, GLONASS)
Microphone Built-in
Speaker (Voice Guidance) Built-in
Impact Sensor 3-Axis Acceleration Sensor

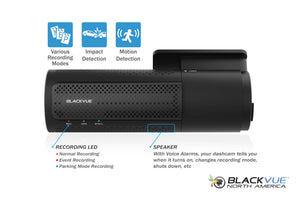

LED Indicators

Front: FCC, ISED, CE, UKCA, RCM, Telec, RoHS, WEEE

Rear: FCC, ISED, CE, UCKA, RCM, RoHS, WEEE, KC

Rear Camera IR Illumination

940 nm (2 Infrared (IR) LEDs)

Button

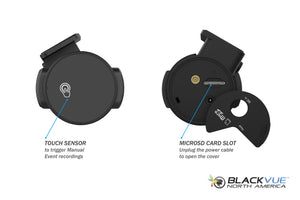

Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings.

Backup Battery Built-in supercapacitor
Input Power DC 12V-24V (3 pole DC Plug (Ø3.5d x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC)
Power Consumption

Normal Mode (GPS On/2CH): Avg. 380mA / 12V

Parking Mode (GPS Off/2CH): Avg. 300mA / 12V

* Approx. 40mA increase in current when IR LEDs are ON.

* Actual power consumption may vary depending on use conditions and environment.

Operation Temperature -20 °C − 80 °C (-4 °F − 176 °F)
Storage Temperature -20 °C − 80 °C (-4 °F − 176 °F)
High Temperature Cut-Off Approx. 80 °C (176 °F)
Certifications

Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC

Interior: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC

Software

BlackVue Viewer

* Windows 7 or higher and Mac Yosemite OS X (10.10) or higher

BlackVue Web Viewer

* Chrome 71 or higher, Safari 13.0 or higher

Application BlackVue Application (Android 8.0 or higher, iOS 13.0 or higher)
Other Features Adaptive Format Free File Management System
