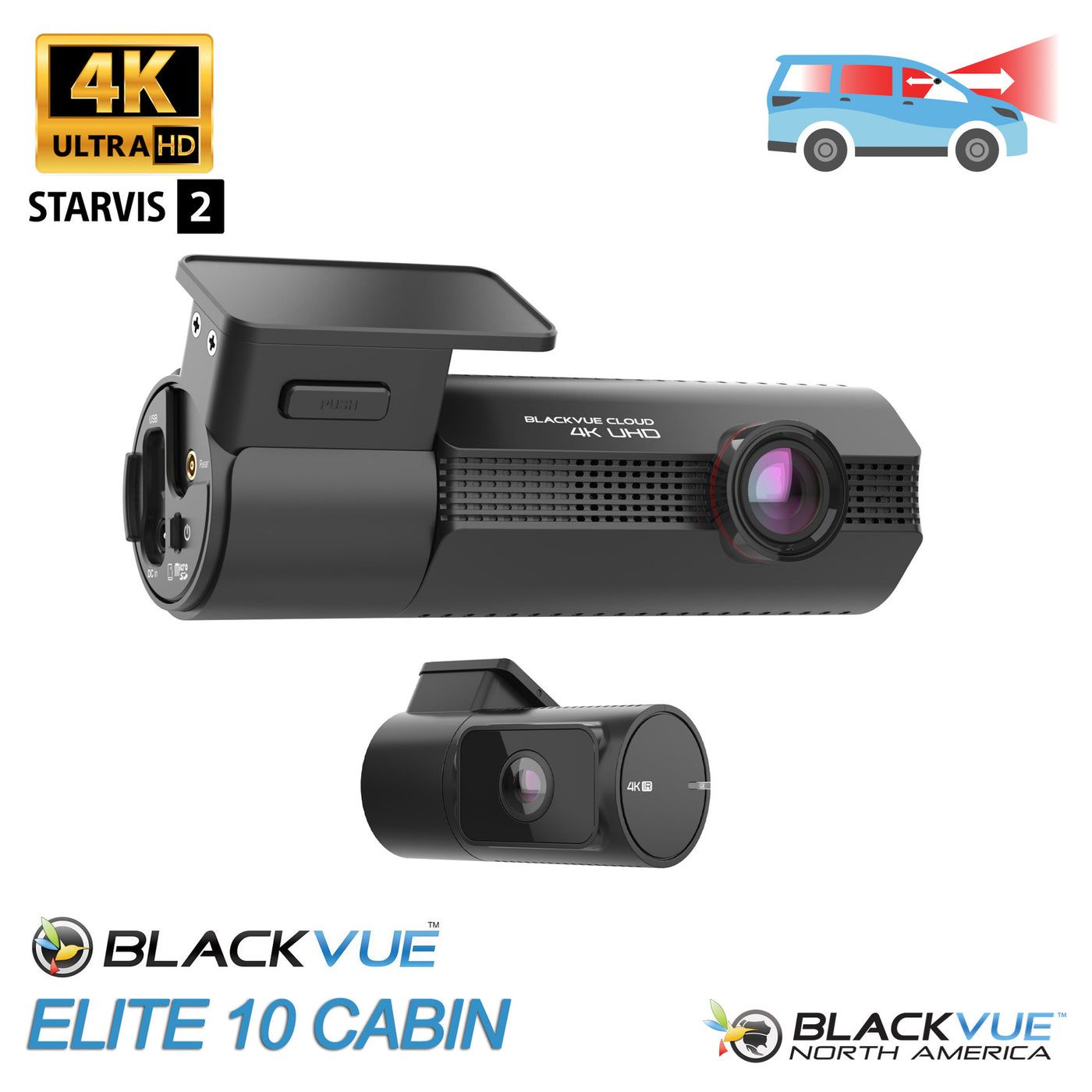

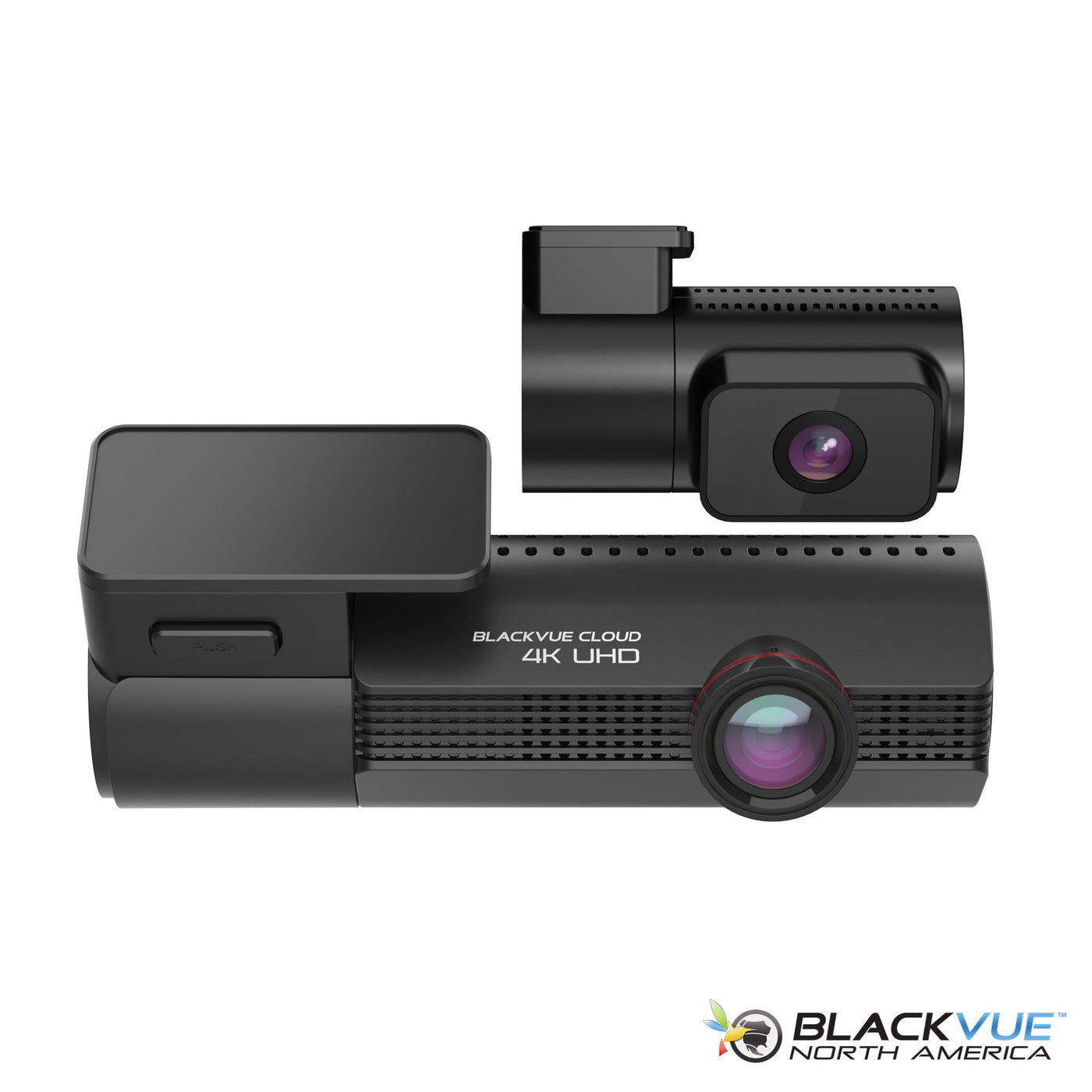

BlackVue ELITE 10 2CH IR | 4K Front + 4K Cabin Dash Cam for Front & Interior Recording
4K Coverage, Inside and Out

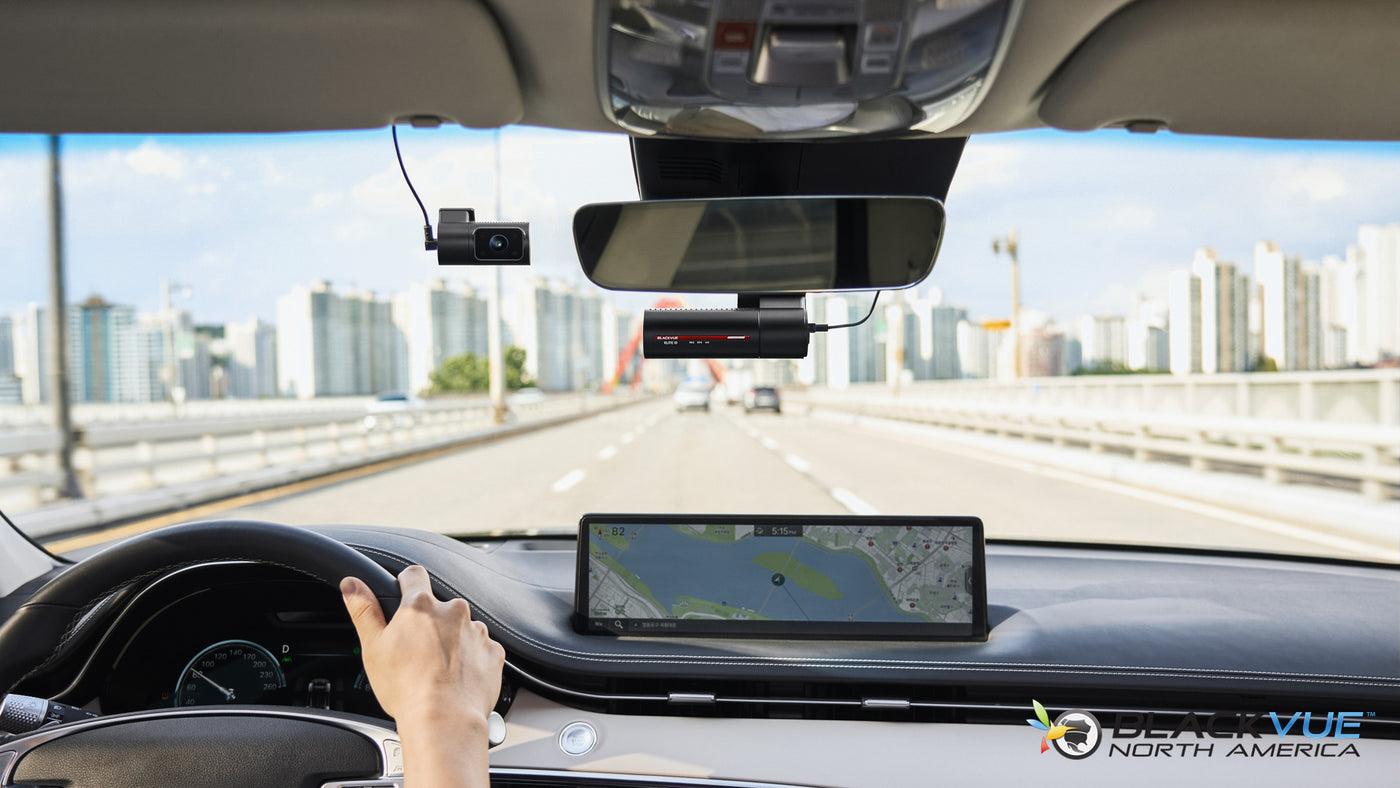

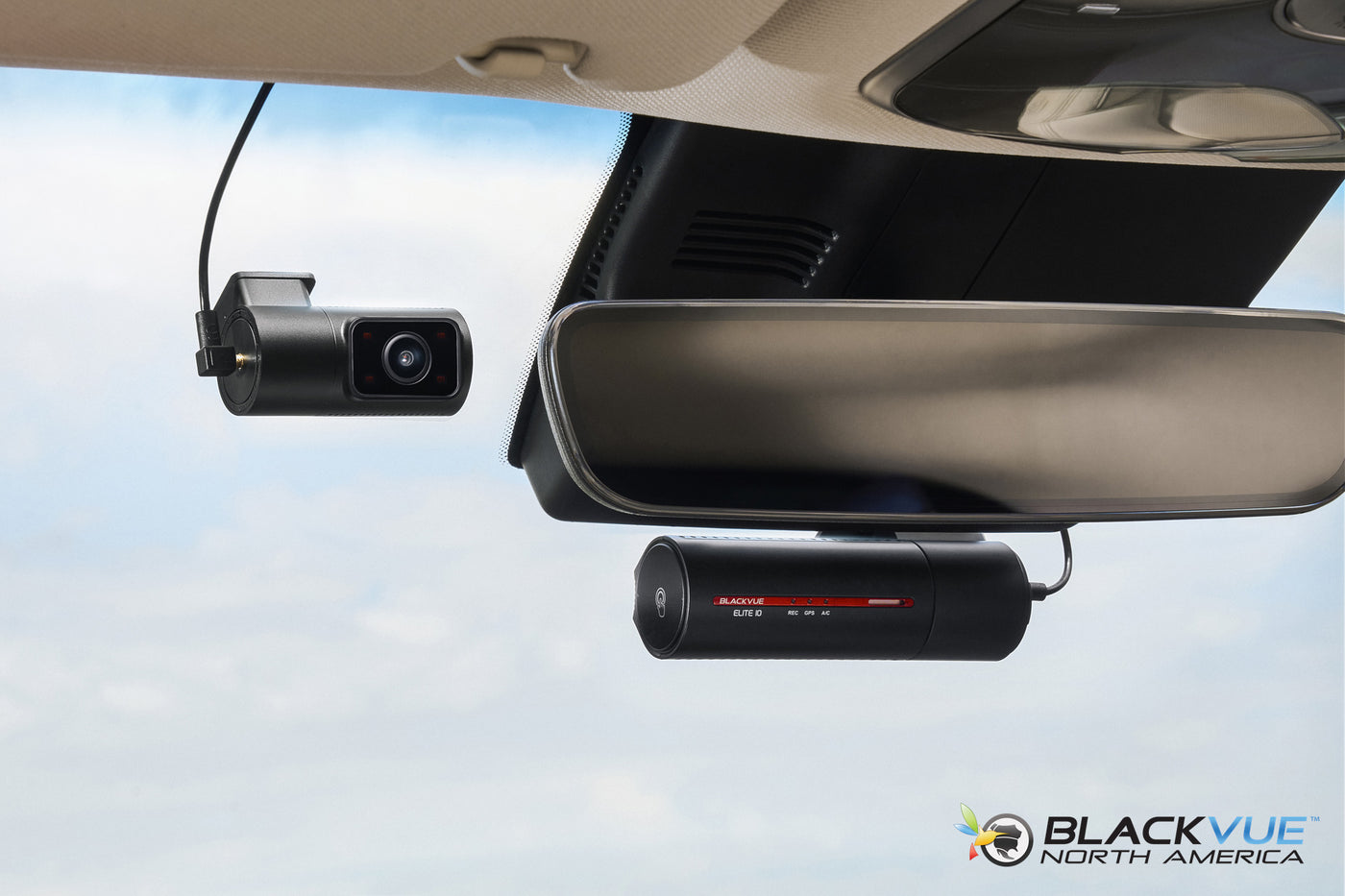

The BlackVue ELITE 10 Cabin records the road ahead and the people riding with you in 4K. Front and interior cameras capture both sides of the story, whether you are commuting, carrying passengers, or managing company vehicles.
Redefined 4K Clarity with HDR

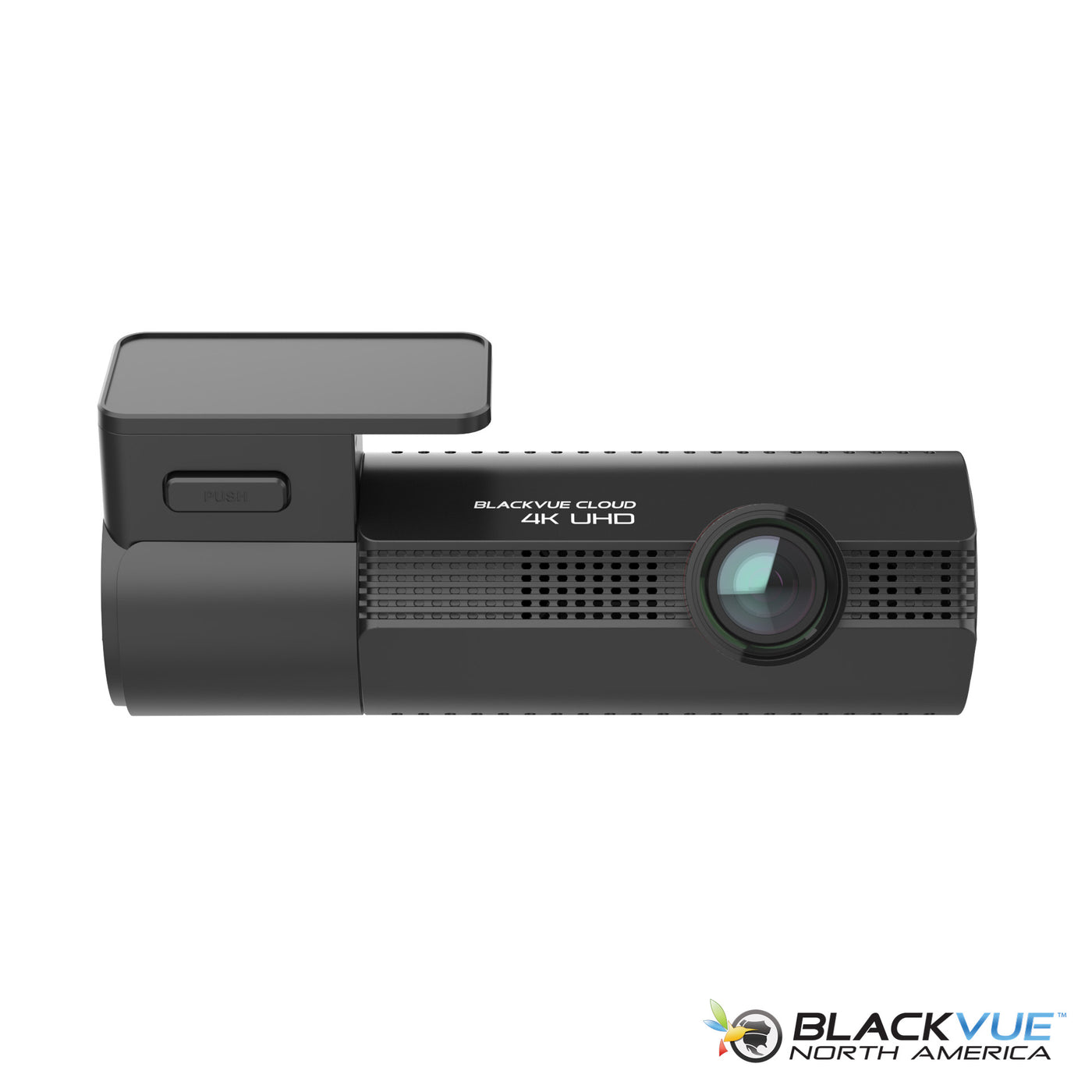

The ELITE 10 Cabin combines a Sony STARVIS 2 front sensor with HDR to capture clear, balanced 4K footage in bright sunlight and low-light conditions.
4K Cabin Recording, Day and Night

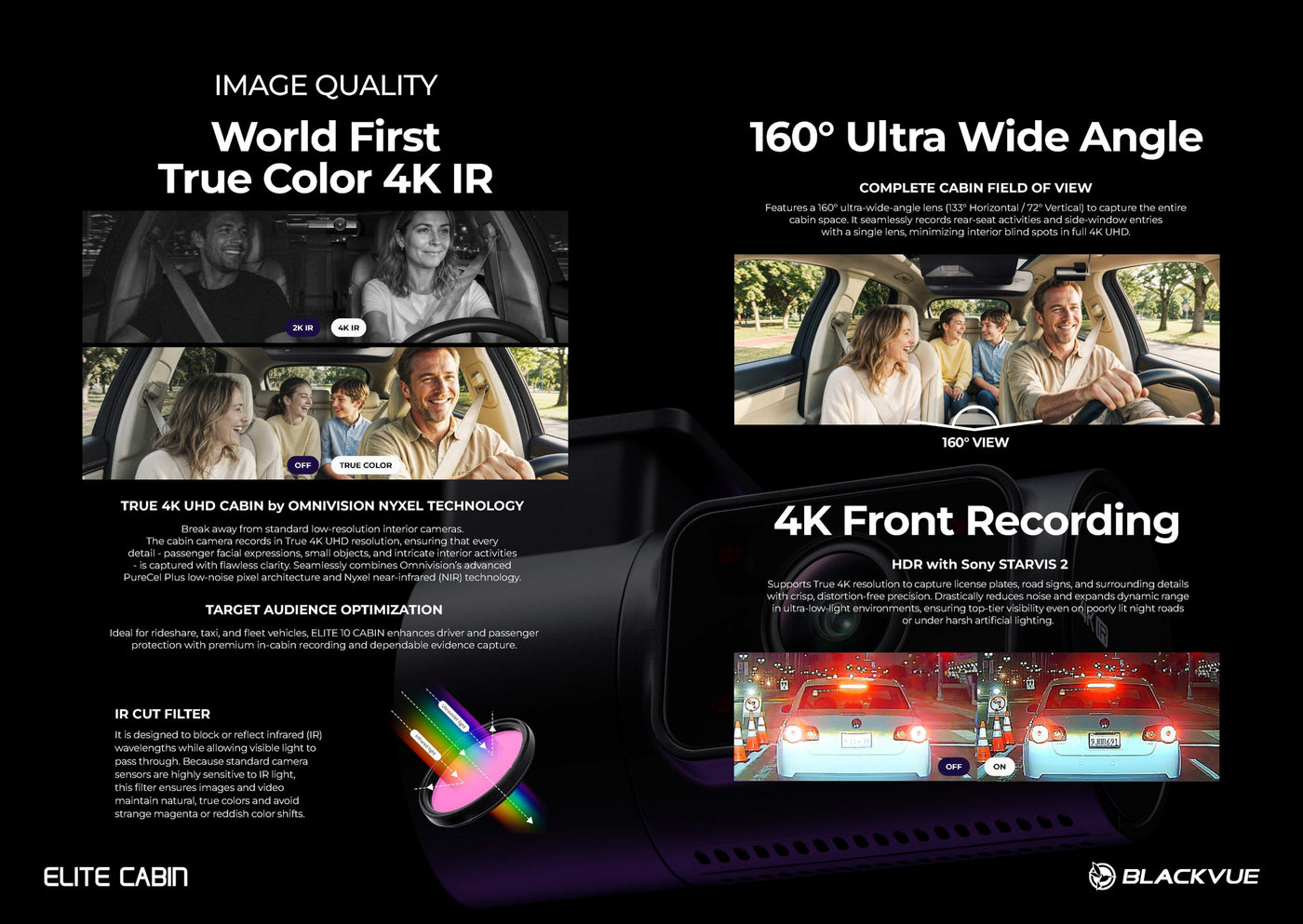

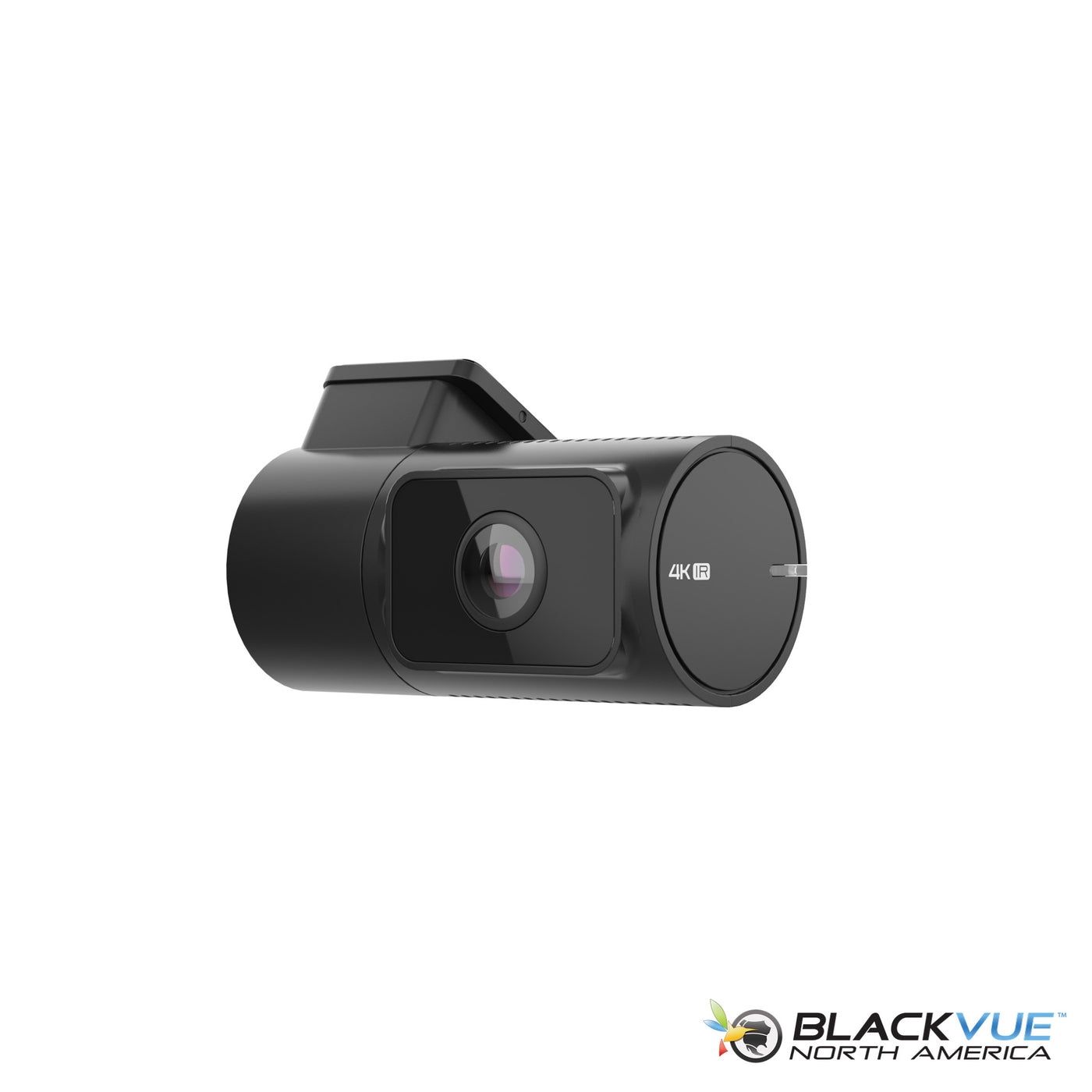

The OMNIVISION Nyxel cabin camera combines true daytime color with infrared night vision. See the difference in the side-by-side comparison below.
More of the Cabin in View

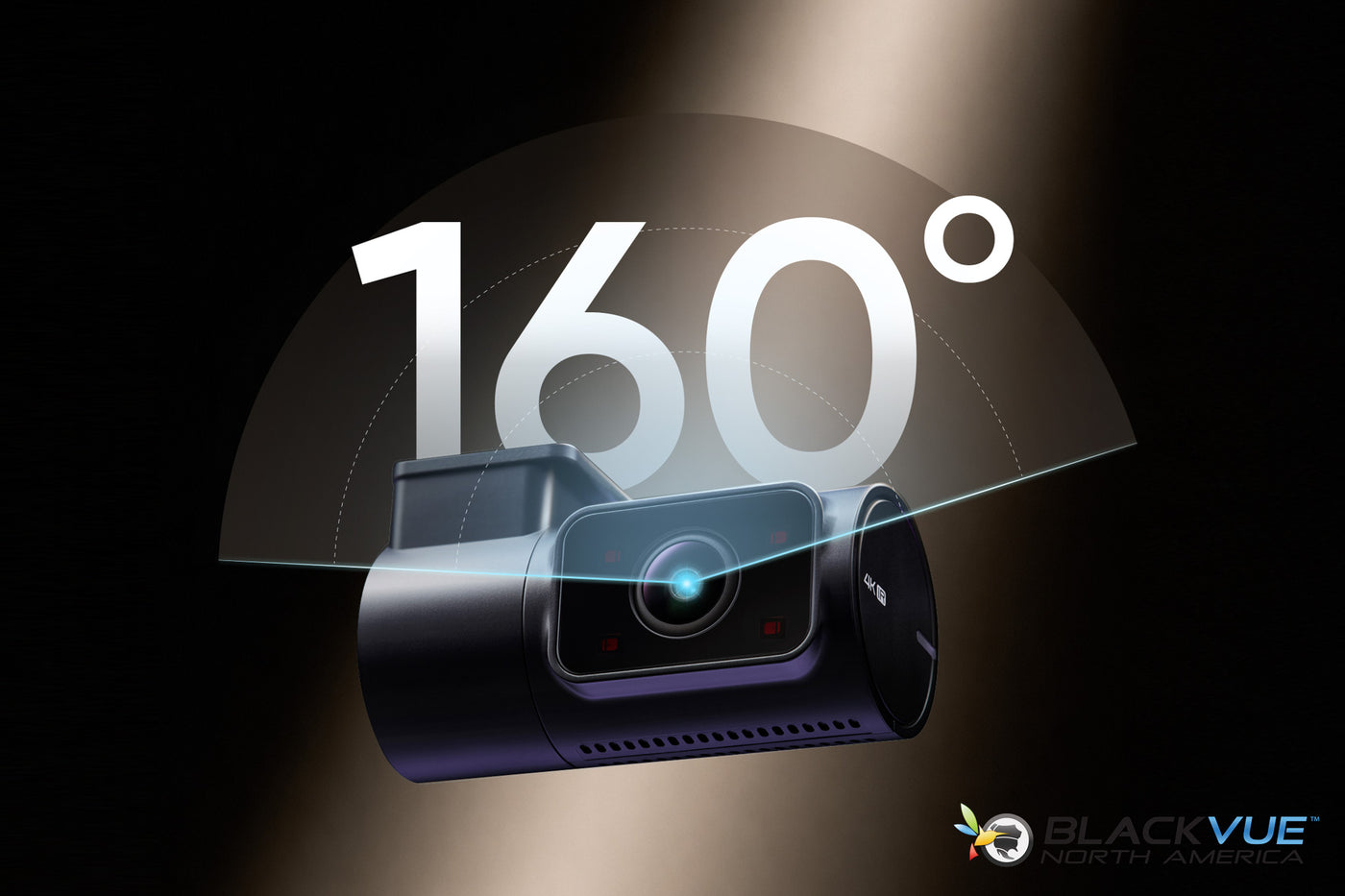

A 160° cabin view covers the seating area and side windows, with four infrared LEDs for dark interiors.
Automatic IR-Cut Filter
The filter switches automatically between accurate daytime color and infrared night recording as light levels change.

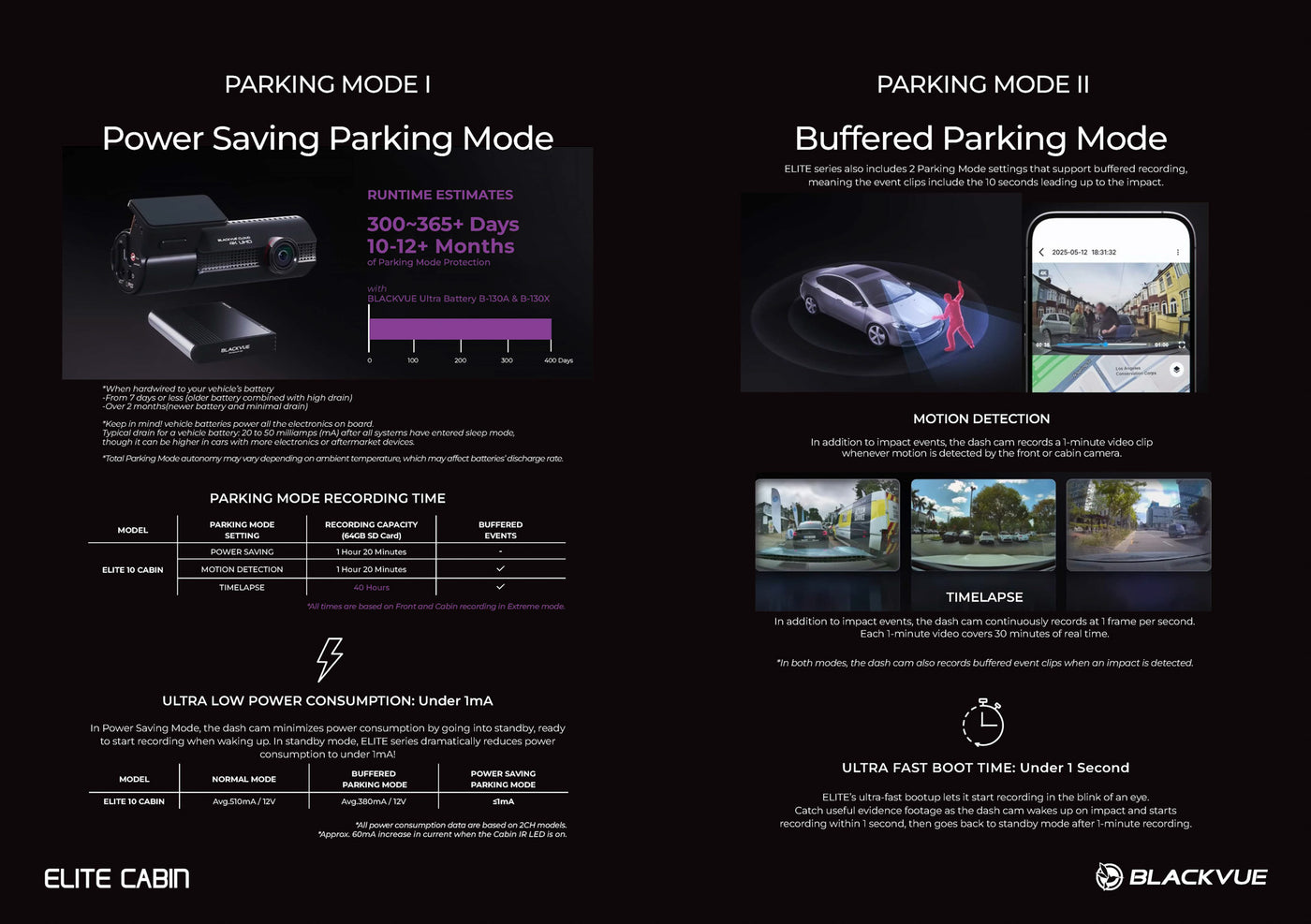

Protection While You Park
Choose the parking mode that fits your routine. Parking recording requires a suitable continuous power source, such as a hardwired connection or compatible dashcam battery pack.
Power Saving Mode
Uses less than 1 mA in standby and starts recording within one second of an impact.

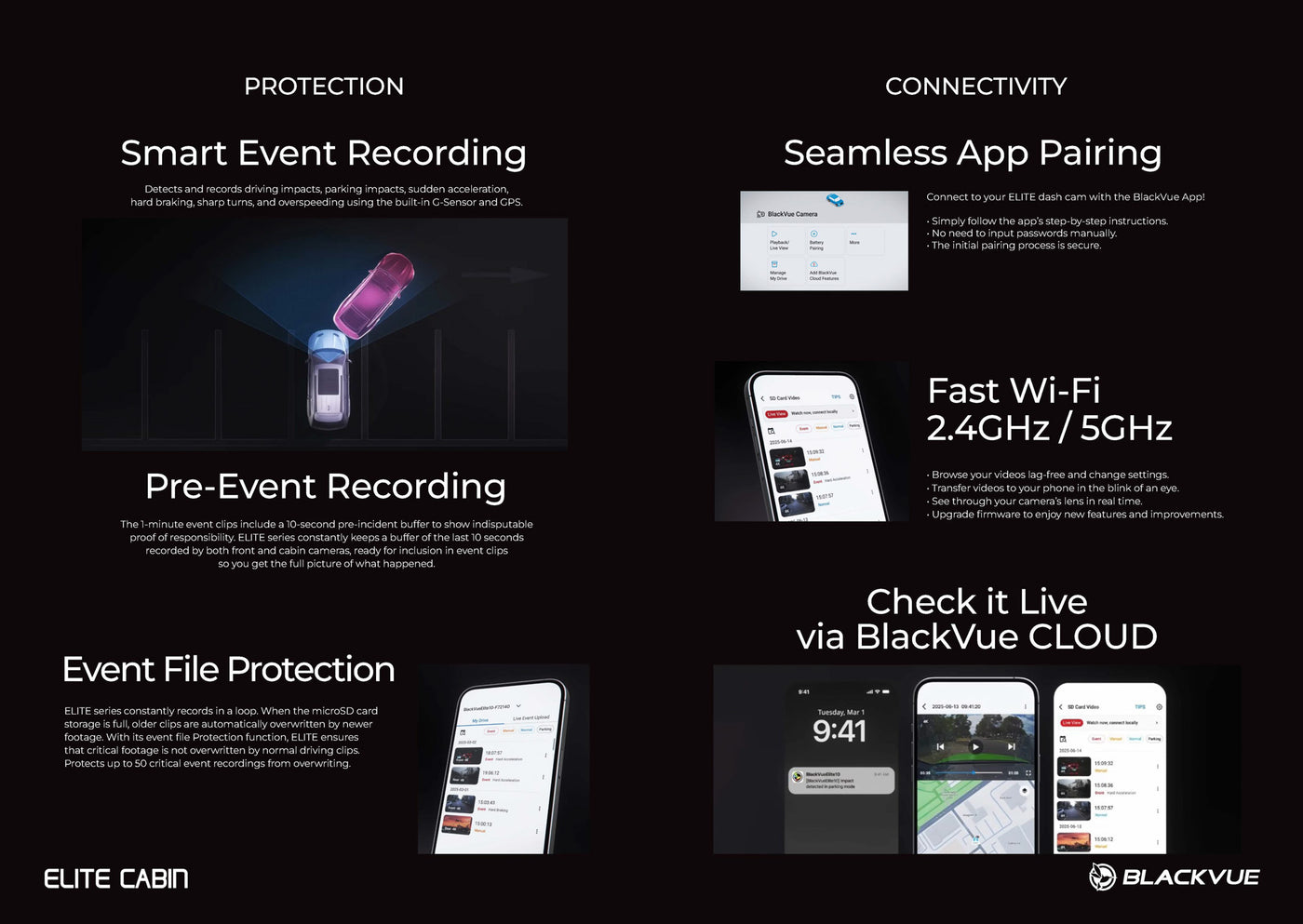

Motion & Impact Detection
Buffered recording captures events with a 10-second lead-in.
Time Lapse
Records one frame per second for compact footage with 30× playback.
For Your Passengers, Your Family, Your Business

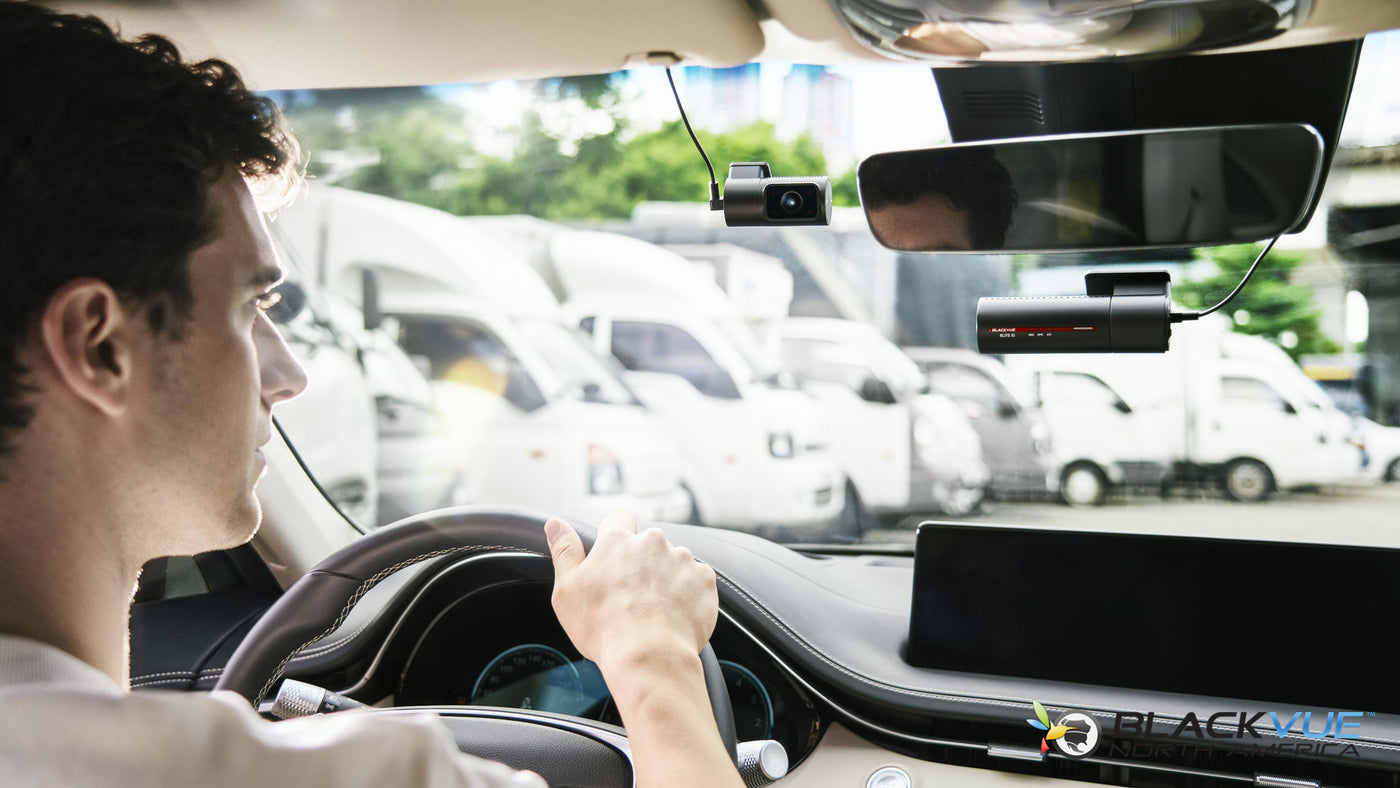

Rideshare Drivers
Keep a record of the road and passenger area throughout each trip.
Families & Everyday Drivers
Capture what is happening ahead of the car and inside the cabin.
Commercial Fleets
Add front and interior video to your company vehicles.
More Features & Information
The ELITE 10 2CH IR is of course still fully functional as a 'typical' dash cam, recording at all times when you drive, whether you choose to utilize the optional LTE / Cloud features or not:
- When plugged in to your standard power outlet in the vehicle, the system will still power on and off with the vehicle, automatically recording audio, video and GPS speed & location at all times as you drive.
- For motion detection ("parking mode") recording. Alternatively, the ELITE 10 2CH IR can also be powered by the BlackVue B-130A Battery Pack instead of your car battery while the vehicle is parked.
- All normal driving and parking mode recordings are automatically stored locally on the internal BlackVue memory card (64gb - 1tb options available). Once the memory card is completely 'full', only the oldest video file on the card is overwritten as each new video file is created (this is known as loop recording).
- The memory card can be removed and plugged in to your PC or Mac using a microSD to USB adapter. This is an easy way to do a bulk download or backup of all your videos.
- The ELITE 10 2CH IR does not have a screen on it from which to play back recorded videos from the memory card. Thankfully, the recordings can be accessed via a direct WiFi connection. You can connect to the ELITE 10 2CH IR with your smartphone the same way you would connect to a WiFi network at home or at Starbucks, then use the free BlackVue app to view and download your recordings directly from the camera.
- Audio recording, on by default, can be disabled temporarily, or turned off completely by default.
- GPS speed display can be disabled from being visible in your video recordings.

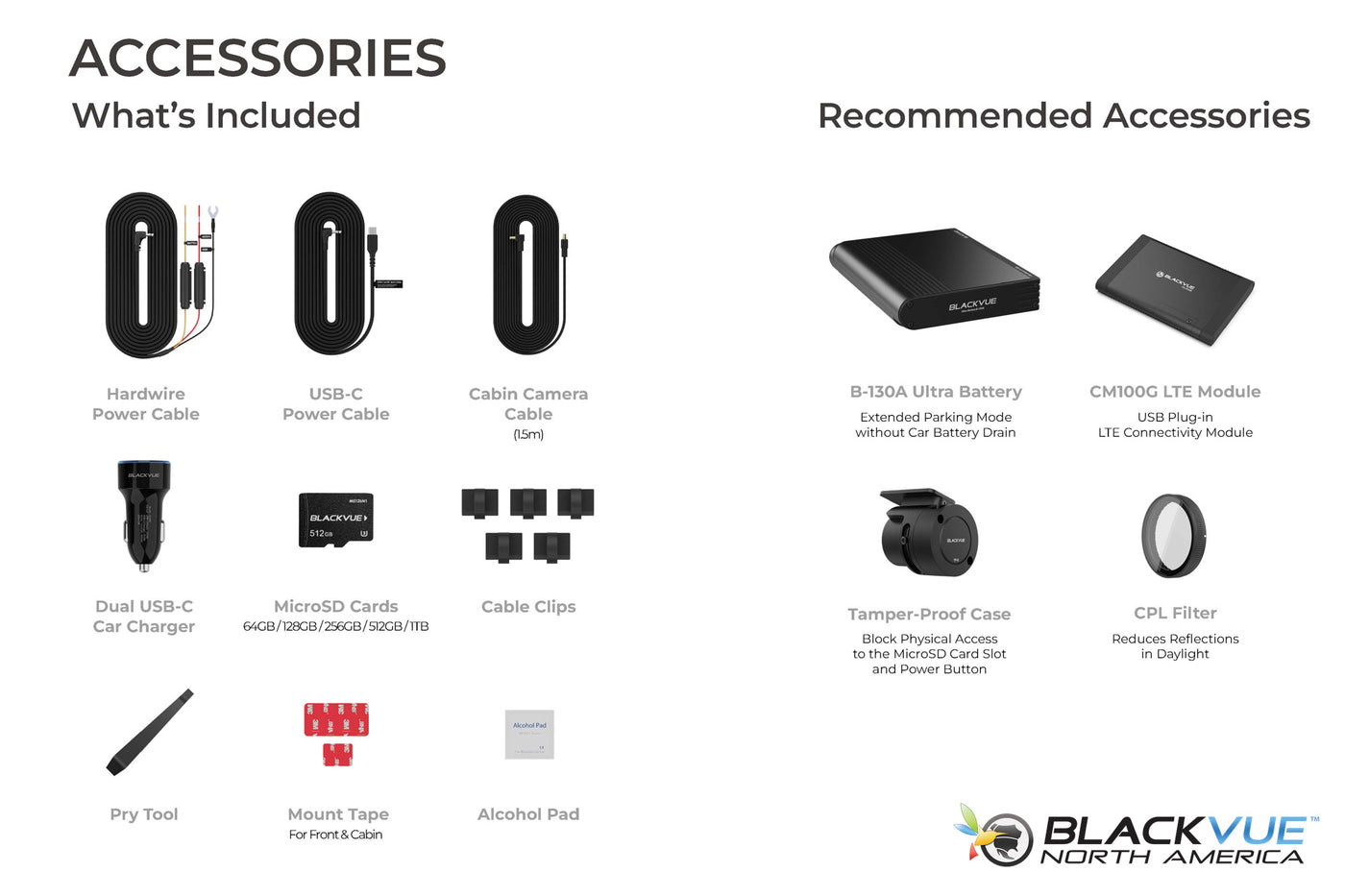

- Everything you need to use the system is included in the box: front camera with adhesive windshield mount, BlackVue memory card, plug-in power cable, optional direct-wire power cord, etc.
A Note on Memory Cards
All BlackVue dashcams include a BlackVue-branded 64GB-1TB memory card. While the memory cards are removable and the card slots will accept other brands of memory cards, we strongly suggest the use of only BlackVue memory cards in the BlackVue dashcams, as the use of a non-BlackVue memory card may cause performance issues and may void your manufacturer’s warranty.
BlackVue OEM memory cards are industrial-grade VNAND-type microSD cards and are designed and tested to withstand the extreme temperatures, vibrations and the constant read/write cycles of high quality dashcams. Typical consumer-grade memory cards such as those from SanDisk are simply not up to the task. Stick with the OEM BlackVue memory cards to ensure your dashcams are always recording when it matters most.

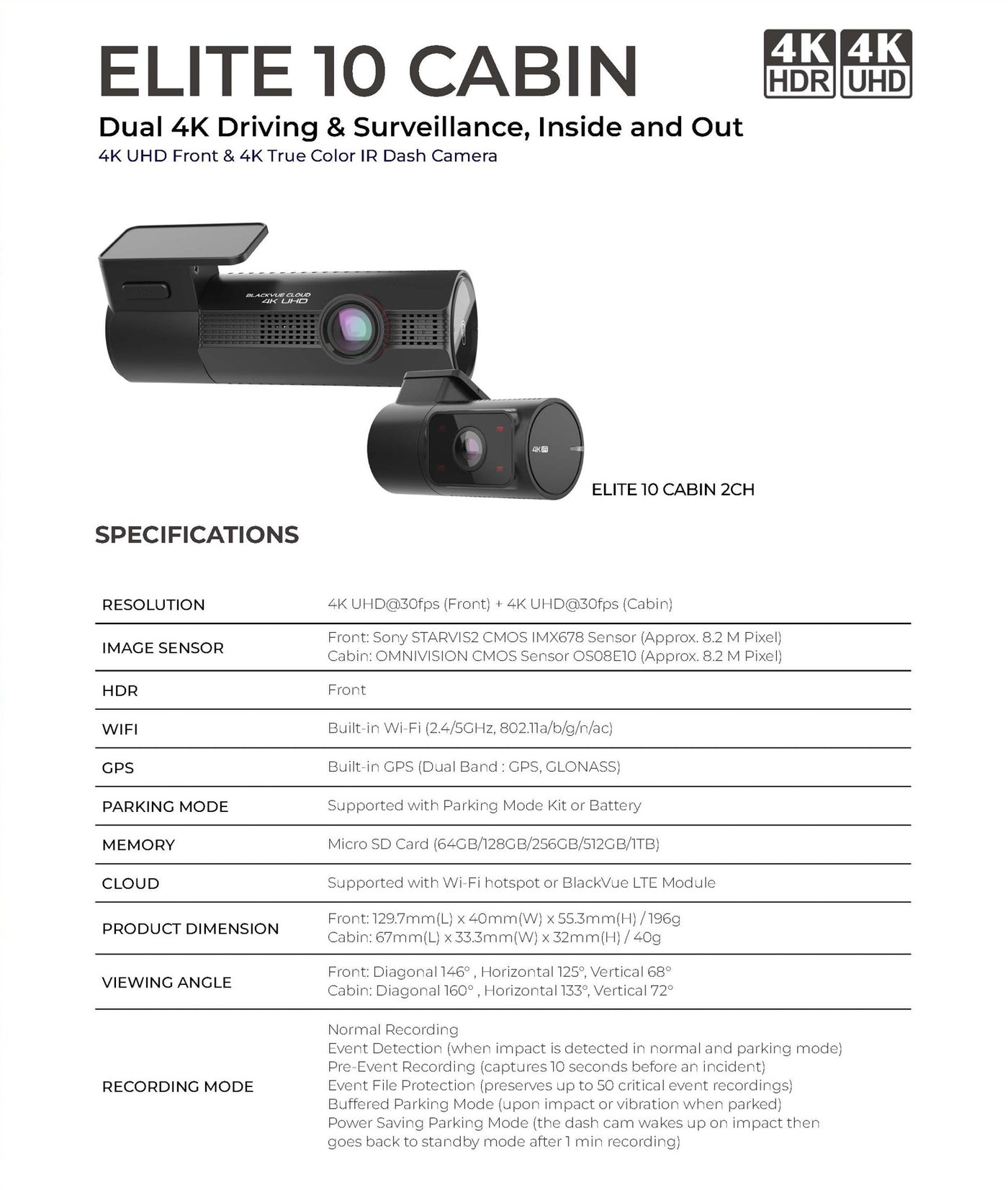

| Model Name | ELITE 10-2CH-IR |
| Channel | 2CH |
| Highlights | Dual 4K UHD HDR Front and 4K UHD Interior, 2.4-5GHz Wi-Fi, Cloud (data not included), Power Saving Parking Mode |
| Product Dimensions / Weight |
Front: Length 129.7mm (5.12in) x Width 40mm (1.58in) x Height 55.3mm (2.18in), 195g (0.43 lb) Interior: Length 67mm (2.64in) x Width 33.3mm (1.311in) x Height 32mm (1.26in), 40g (0.09 lb) |
| Interior Camera Connection | Coaxial cable |
| Memory Support | microSD card up to 1TB |
| Smart Event Recording | Driving Impact Parking Impact Overspeed Hard Acceleration Hard Braking Hard Cornering (Including 10 sec. Pre-Event buffer) |
| Parking Mode | Power Saving ( < 1mA) Motion Detection Time Lapse |
| Parking Mode Event Voice Notifications | YES |
| Protection Systems | Timer Cut-Off: 1~48H Low Voltage Cut-Off: Passenger Vehicle 11.8~12.5V or Heavy Vehicle 22.8~24V High Temperature Cut-Off (75°C) |
| Imaging Sensor |

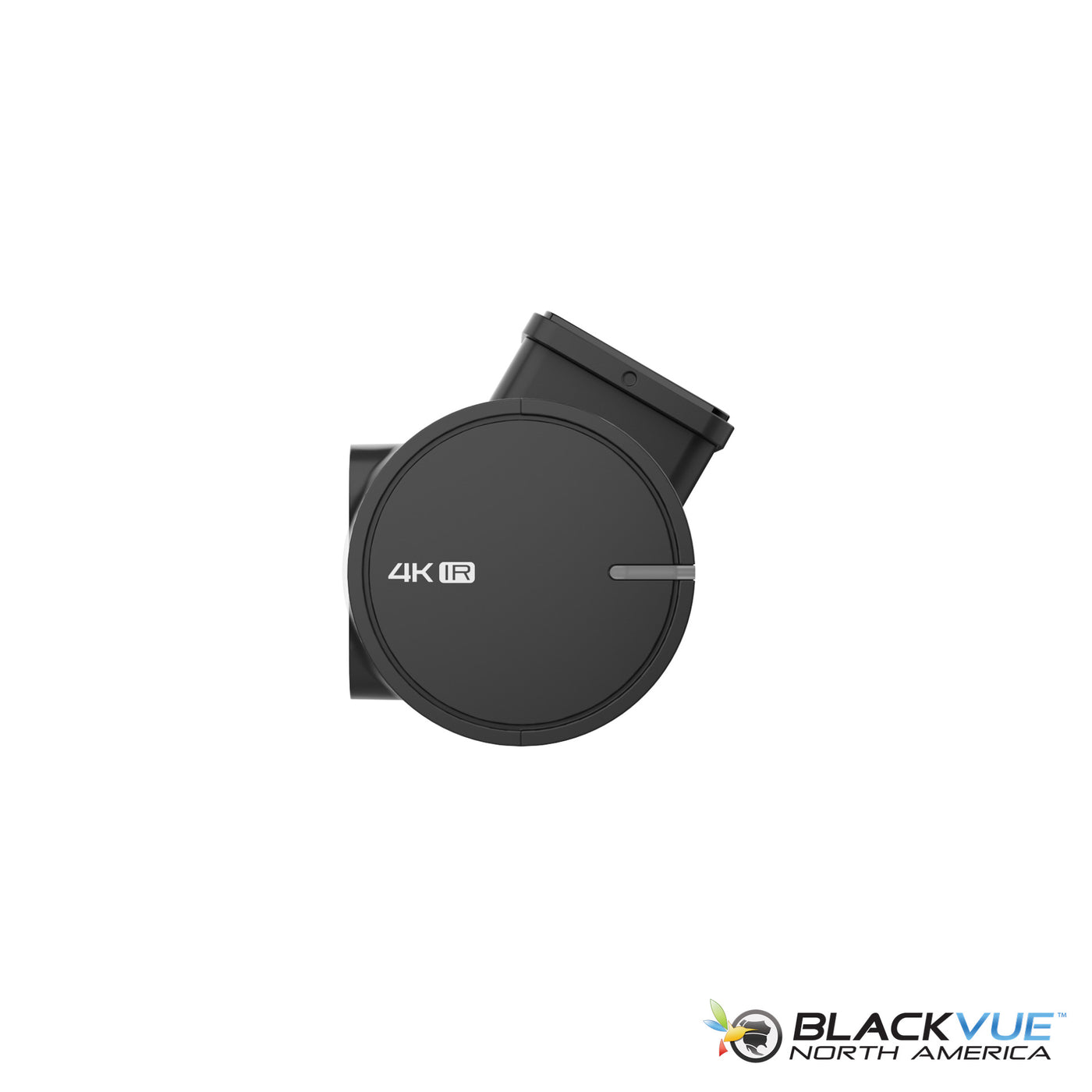

Front: STARVIS 2 CMOS Sensor (IMX678) Interior: Omnivision CMOS Sensor (OS08E10) |
| Viewing Angle |
Front: Diagonal 146° , Horizontal 125°, Vertical 68° Interior: Diagonal 160° , Horizontal 133°, Vertical 72° |
| Resolution Frame Rate |
Front and Interior: 4K UHD@30fps @ 30 fps * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.265 (HEVC), H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Extreme (H.265): 60+30 Mbps Extreme (H.264): 40+30 Mbps High (Default): 30+30 Mbps Medium: 20+20 Mbps Low: 10+10 Mbps |
| Format Free | Adaptive Format-Free (US 10,922,270 B2) |
| Event File Overwrite Protection | YES (up to 50) |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11ac – 2.4-5GHz) |
| Cloud Compatible | YES |
| GPS | Built-in (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| Button |
Power Button: Short press to turn on / Long press to turn off. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. Bluetooth Remote Button (Optional): Manual Recording |
| Operation Temperature | -20 °C − 65 °C (-4 °F − 149 °F) |
| Storage Temperature | -20 °C − 80 °C (-4 °F − 176 °F ) |
| High Temp Cut Off | Approx. 75 °C (167 °F)) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption |
Normal Mode (GPS On/2CH): 510mA * Actual power consumption may vary depending on use conditions and environment. |
| Software | BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher FLEETA Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| App | BlackVue App * Android 10.0 or higher, iOS 15.0 or higher |
| Others | Adaptive Format-Free File Management System |
| Bluetooth | Built-in (V2.1+EDR/5.3) |
| LTE | External (with optional LTE Module) |
| Warranty | 2 Years |
