BlackVue DR770X BOX PRO – Choose 1CH or Custom 2CH Setup
Access The Cloud
via optional LTE module
Seamless App Pairing
Connect Instantly. Control Effortlessly
Boxed for Security
The recording box is where everything comes together. It keeps your footage safe and out of sight. It’s lockable, tucked away, and built to stop anyone from unplugging cables or pulling the memory card. Your recordings stay right where they should.
Full HD Clarity at 60 fps
Capture the road in crisp Full HD at 60 frames per second, delivering smooth, true-to-life video even at highway speeds. Add-on cameras record at the same 60 fps rate, so every angle stays consistent and sharp.
One Button for Key Moments
One touch, and you’ve got it saved. The manual record button creates an instant event file, protecting that footage from being overwritten so the important moments are safe. Simple, reliable, and always ready when you are.

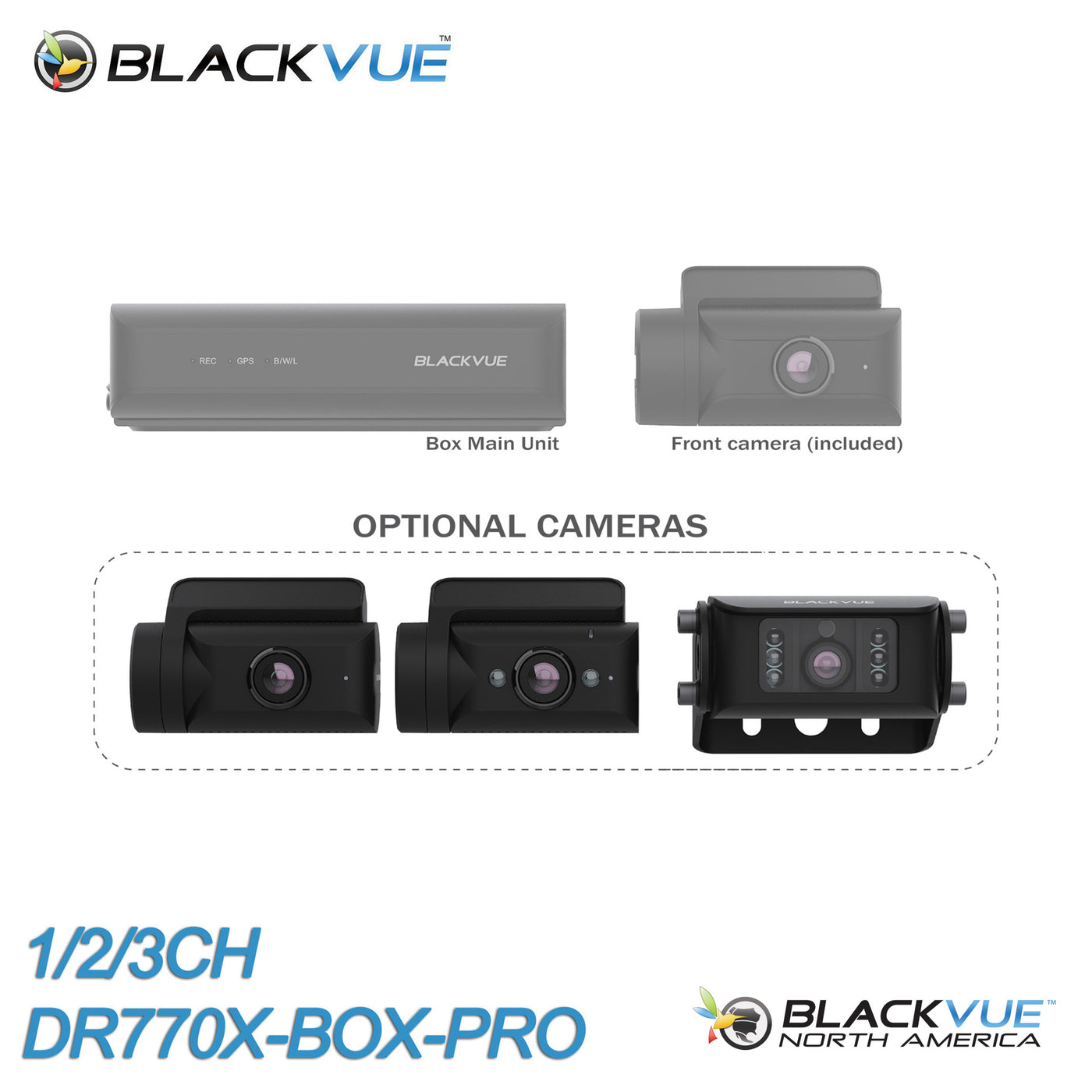

Build It Your Way
Start with the front camera and build from there. Add a rear, interior, or exterior camera to create a 2-channel setup tailored to your vehicle. Want rear coverage? Done. Need an interior view for rideshare or fleet use? Easy. Prefer a waterproof exterior cam for blind spots or specialty installs? You can do that too.
Optional Truck Cam
Built for Work, Ready for Weather
Perfect for vehicles with blind spots or no rear window, the externally mounted truck camera adds reliable vision where you need it most. It’s fully waterproof, can be mounted anywhere, and built to handle heat, rain, and road grime, making it ideal for vans, RVs, and large trucks.
Parking Mode
Connecting the DR770X to your car via the included Hardwiring Power Cable or the optional B-130A Battery Pack battery pack allows for parking mode. When parked, the DR770X can also detect any visual movements around your vehicle. These events are automatically tagged and saved. If a cloud connection is present, you'll have the ability to receive alerts and view the clips from both computer and mobile device.
Optional External Battery
The B-130A Power Magic Ultra Battery is the latest and greatest way to power your BlackVue dash cam without tapping into your car’s battery. It keeps your dash cam running in parking mode or connected to the cloud—even when your engine’s off.
Optional LTE Module
The optional CM100LTE module makes it easy to connect to the cloud 24/7. This add-on device connects to the DR770X front camera via USB port, providing a constant internet connection and allowing the DR770X to serve as a mobile hotspot for up to five devices. Unlike in-vehicle Wi-Fi hotspots, the module stays powered on while parked and provides access to your dash camera from anywhere in the world. If you'd like LTE built directly into your dash cam, check out the DR970X-2CH-LTE-PLUS
BlackVue Cloud
Packed With Innovative Features Live View, Emergency Alarm, GPS Tracking,Two-way Voice Communication, Video Backup, Remote Video Playback, the possibilities are endless. BlackVue Over the Cloud is all about using your dashcam to its full potential, so that you and your car are always connected

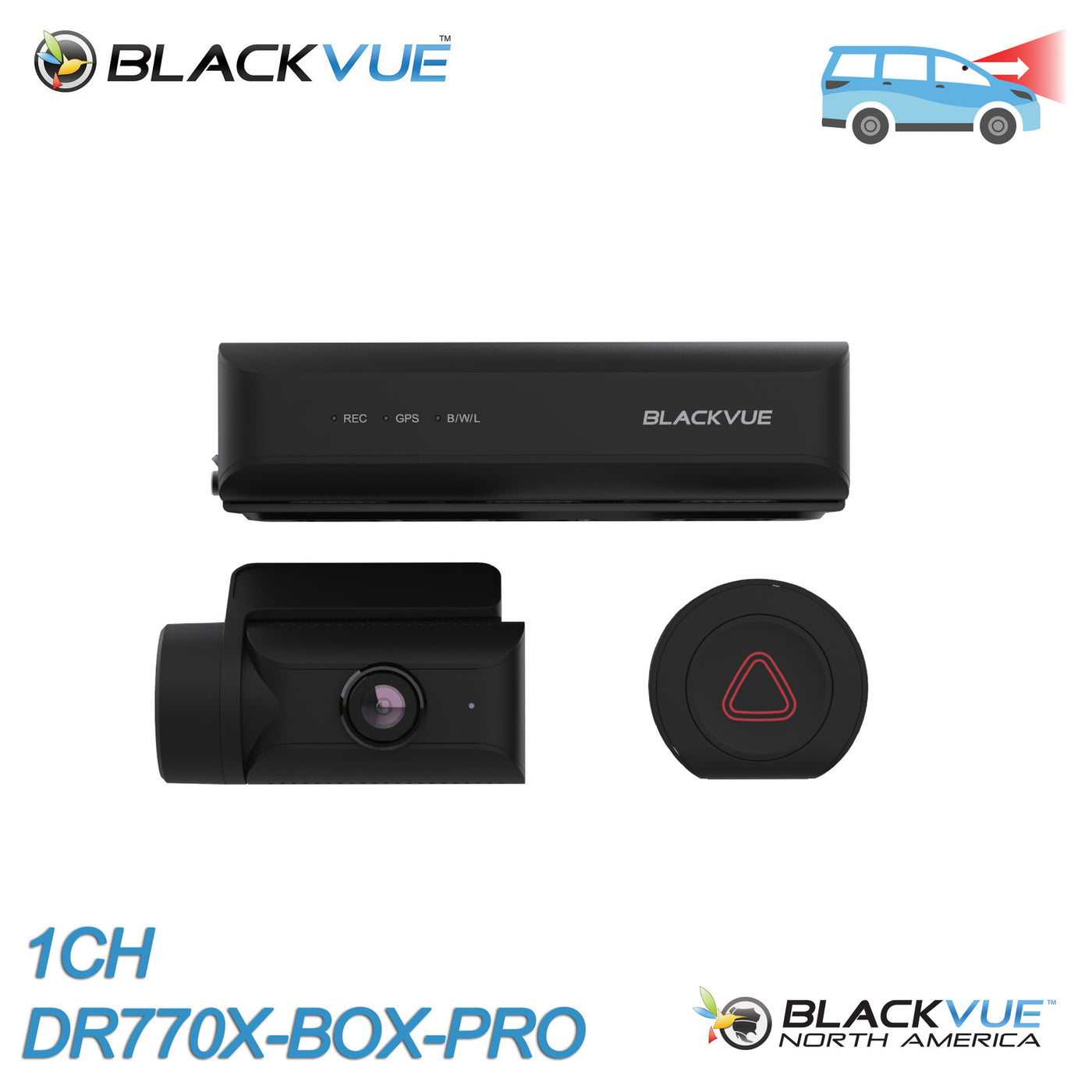

Box Contents
- BlackVue DR770X BOX PRO Recording Box
- BlackVue DR770X BOX PRO Front Camera
- SOS Button
- Main unit Cigarette Lighter power cable (3 pin)
- Camera connection cable (1EA)
- Main unit Hardwiring Power Cable (3 pin)
- BlackVue OEM MicroSD Memory Card (choice of 64/128/256/512 GB)
- USB MicroSD Memory Card Reader/Adapter
- Velcro strip
- Trim Removal Tool
- Main unit key
- Allen wrench
- Spare mount sticky pads
- Spare screws for tamperproof cover (2EA)
- Cable clips (12EA)
- Quick Start Manual
| DR770X-1CH-BOX-PRO | |
| Channel | 1CH |
| Highlights | Full HD, Multiple Add-on Cam Options, Cloud, Wi-Fi, Triple Sony Sensors, External GPS and LTE Module |
| Color/Size/Weight |
Main Unit: Black / Length 5.12 in x Width 3.98 in x Height 1.30 in / 7.37 oz Front: Black / Length 2.46 in x Width 1.35 in x Height 1.34 in / 1.52 oz Wireless Button: Black / Length 1.78 in x Width 1.65 in x Height 0.57 in / 0.81 oz |
| Memory | microSD Card (64 GB / 128 GB / 256 GB/ 512GB) |
| Recording Modes |
Normal recording, Event recording (when the impact is detected in normal and parking mode), Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable, ACC+ will trigger parking mode. When using other methods, G-sensor will trigger parking mode. |
| Parking Mode |
YES (hardwiring cable included) |
| Parking Mode Event Voice Notifications |
YES |
| Camera |
Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel) |
| Viewing Angle |
Front(FC1) : Diagonal 139°, Horizontal 116°, Vertical 61° |
| Resolution/Frame Rate |
Front / Rear / Interior IR Full HD (1920×1080) @ 60 fps – Full HD (1920×1080) @ 30 fps- Full HD (1920×1080) @ 30 fps * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.264 (AVC) |
| Image Quality (MB/s) |
Front / Rear / Interior Extreme: 16 + 10 + 10 Mbps Highest: 12 + 10 + 10 Mbps High: 10 + 8 + 8 Mbps Normal: 8 + 6 + 6 Mbps |
| Format Free | YES (Adaptive) |
| Event File Overwrite Protection | YES (up to 51) |
| Video Compression Mode | MP4 |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Bluetooth | Built-in (V2.1+EDR/4.2) |
| Wi-Fi | Built-in (802.11 b.g.n) |
| Cloud Compatible | YES |
| LTE | Optional External Module |
| GPS | External (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker (Voice Guidance) | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators |
Main unit: Recording LED, GPS LED, B/W/L (Bluetooth/Wi-Fi/LTE) LED, Front Security LED Front: Front & Rear Security LED Rear: Front & Rear Security LED Interior IR: Front & Rear Security LED EB-1: Operating / Battery low voltage LED |
| Rear Camera IR Illumination |
Interior IR: 940nm (2 Infrared (IR) LEDs) |
| Button |
EB-1 button : Press the button – manual recording. |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (3 pole DC Plug(Ø3.5d x Ø1.1) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption |
Normal Mode (GPS On/3CH) : Avg. 750mA/12V Parking Mode (GPS Off/3CH) : Avg. 600mA/12V * Approx.40mA increase in current when Interior Camera IR LEDs are ON. * Actual power consumption may vary depending on use conditions and environment. |
| Operation Temperature | -20 °C − 70 °C (-4 °F − 158 °F) |
| Storage Temperature | -20 °C − 80 °C (-4 °F − 176 °F ) |
| High Temperature Cut-Off | Approx. 75 °C (167 °F) |
| Certifications |
Front: FCC, CE, Telec, IC, UKCA, RoHS, WEEE, RCM |
| Software |
BlackVue Application * Android 8.0 or higher, iOS 13.0 or higher BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher BlackVue Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| Other Features | Adaptive Format Free File Management System |
